Home > Products > SPD / TVSS > Din-rail type SPD
ENCODING

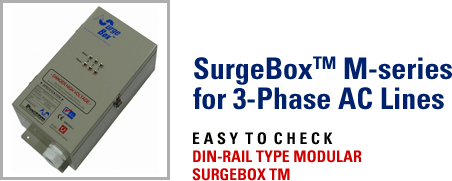

PrimeSolution's SPDs(is named SurgeBoxTM M-series provide clean power for sensitive electronic loads. SurgeBoxTM shunt high energy induced lightning surges and direct impulse currents.
SurgeBoxTM removes power disturbances from electrical distribution systems using a low impedance shunt path to ground. Surges and electrical line noise are absorbed by SurgeBoxTM and are prevented from traveling through distribution system wires to sensitive electronic loads.

M-series is conformed with CE safety EN 61643-1 according to the standard of IEC 61643-1. M-series shall supply to use 3 phase and single phase simultaneously.
M-series shall supply green LEDs that indicate normal operation status for each phase and red color LEDs that indicate abnormal status for each phase.

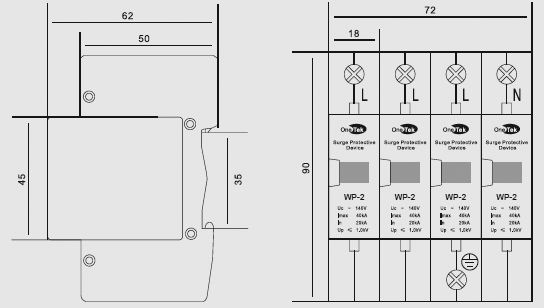

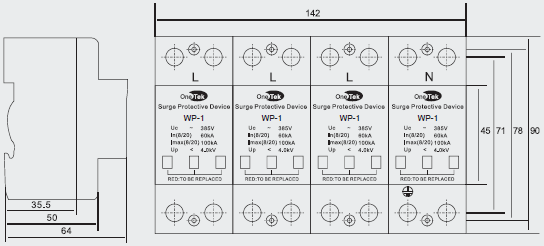

DIMENSION
DIMENSION

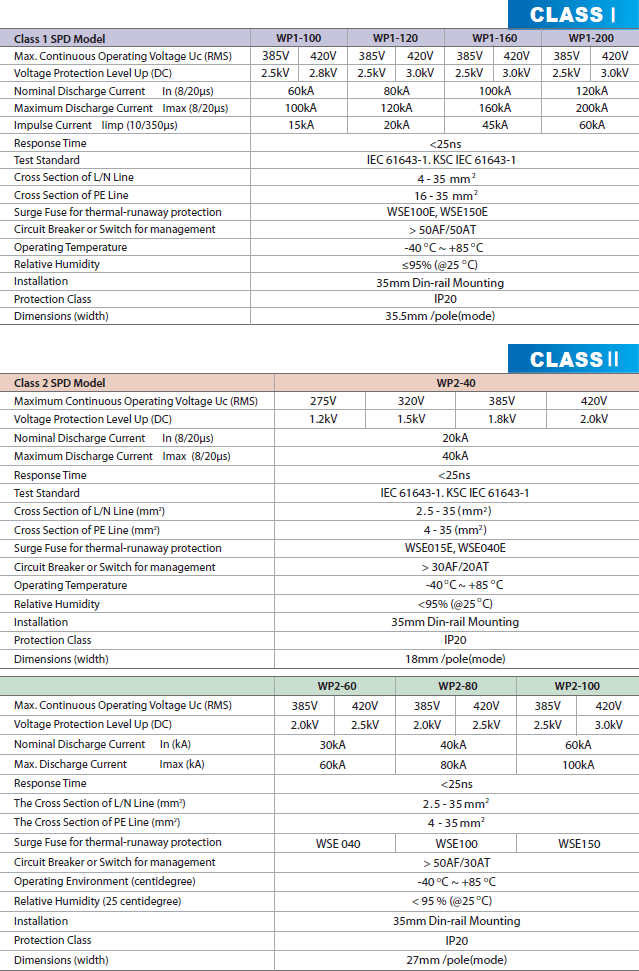

SPECIFICATIONS
