Early Streamer Emission Air Terminals
(Guided broadband lightning rod: ion emission and high voltage pulse type)
|
|
|

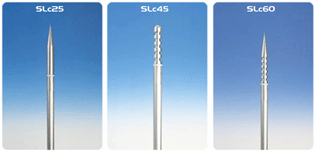

CIRRUS |
|
 |
|
 |
Principles and characteristics of CLRRUS |
|
A lightning strike point is determined when the downward leader approaches within 100m of the coordinate. CLRRUS launches a strong upward leader with a fine timing based on tremendous ionization and wave trains.
Therefore, it guides irregular striking points to CIRRUS to minimize the damages to life and properties and acquire some safe space.
|
|
| Characteristics of CLRRUS |
- Self cleaning
- Light weight(3.6kg)
- Minimal wind effect(diameter of 28mm)
- Concave-convex tip to improve the efficiency
- A wide protection area with low costs
- Simple design for a beautiful exterior
|
|

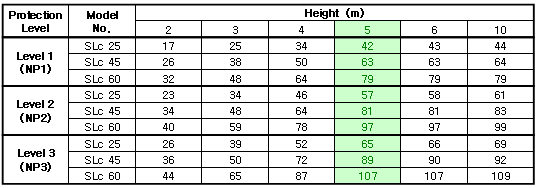

Protection radius of CLRRUS |
|
|
 |
|
|
The protection radius of CLRRUS is determined by the French standard, NFC 17-102 enacted in 1995.
It is based on delta T, an installation height of CLRRUS and a protection class, NP1, 2 or 3.
The protection radius varying depending on the height is suggested in NF C 17-102.
So, all the protection radius of ESE lightning rods are calculated in the same way.
|
|
 |
|
|
|
|
|
